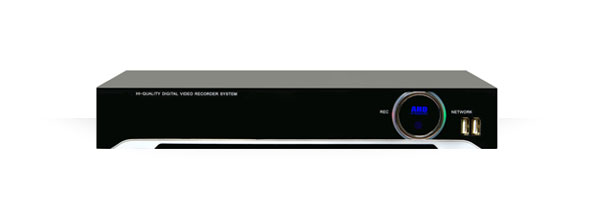

- AHD STANDARD 04/08/16
- Analog/960H/AHD 720p
- Spot
- POS Interface
Specification
| Model | Only support AHD 1.0 (720P and Analog) | ||||
|---|---|---|---|---|---|
| AHD STANDARD 4 | AHD STANDARD 8 | AHD STANDARD 16 | |||
| Mini case | |||||
| Video | Camera input | 4 BNC | 8 BNC | 16 BNC | |
| Individual HD/Analog selectable | All Hybrid (Manual Setting, two channels pair) | ||||
| Available source | AHD 720p25,30/Composite/960H/Mixed | ||||
| Output | 1 HDMI (Main Display) 1 VGA (Main Display) |
||||
| Audio | Audio input | 4 RCA | |||
| Output | 1 RCA, 1 HDMI | ||||
| Sensor In | 4 (NC, NO selectable) | ||||
| Alarm out | 1 relay | ||||
| Operating System | Embedded Linux OS | ||||
| Display | Speed | Real Time | |||
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 | ||||
| Split screen | 1,4 | 1,4,6,8,9 | 1,4,6,8,9,13,16 | ||
| Recording | CODEC | H.264 | |||
| Resolution (Pixel) | 720p (720p25,30) 960H, D1 (Composite, 960H) |
||||
| Picture quality | 4 steps (Super, High, Medium, Low) | ||||
| Speed | NTSC area | 60fps@720p | 120fps@720p | 240fps@720p | |
| PAL area | 50fps@720p | 100fps@720p | 200fps@720p | ||
| Playback | Display | 1,4 | 1,4,6,8,9 | 1,4,6,8,9,13,16 | |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail | ||||
| Speed | NTSC area | 30fps@720p | 60fps@720p | 120fps@720p | |
| PAL area | 25fps@720p | 50fps@720p | 100fps@720p | ||
| Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | ||||
| Network (Individual setting of resolution, frame rates and picture quality) |
Network Interface | Megabit Ethernet | |||
| High Resolution (Pixel) | Record Steaming | ||||
| Low Resolution (Pixel) | 480x256 (720p25,30) CIF (Composite, 960H) |
||||
| Speed | NTSC area | 60fps@480x256 | 120fps@480x256 | 240fps@480x256 | |
| PAL area | 50fps@480x256 | 100fps@480x256 | 200fps@480x256 | ||
| Protocol | TCP/IP, HTTP, DHCP | ||||
| Application | Windows 7 / 8 (PC Client system& IE)/MAC | ||||
| Web Browser | Internet Explorer, Safari, Chrome, Firefox | ||||
| Smart phone App | Android, iPhone for live and search | ||||
| Backup | Interface | USB 2.0 X 2 | |||
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | ||||
| The number of HDD | 1 SATA(No capacity limit ; 6TB of more) | ||||
| Function | •Full GUI with alpha blending | ||||
| •Individual setting of resolution, frame rates and picture quality | |||||
| •Instant Replay | |||||
| •Digital Zoom | |||||
| •Mouse Control | |||||
| •Weekly scheduler with holiday by 10 minutes setting | |||||
| •Covert, Disable and Private function of cameras | |||||
| •Motion Detection with 576 area setting | |||||
| •Relay alarm output | |||||
| •PTZ control by RS-485 | |||||
| •Daylight Saving Time and Network Time Setting | |||||
| •Multi User Authority up to 8 Users | |||||
| •Deinterlacer upon live and playback | |||||
| •22 languages with full graphic | |||||
| •Individual Network port setting | |||||
| •Auto Deletion | |||||
| •Import and Export the configuration | |||||
| •Interactive setup via network | |||||
| •POS Interface | |||||
| •Dual CODEC engine for independent video transmission | |||||
| Others | Power Consumption | 24W | |||
| Operating Temperature | 5 ~40℃(41~104F) | ||||
| Relative Humidity | Maximum 80% non-condensing | ||||
| Dimension | 300(W)×210(D)×48(H) mm | ||||
