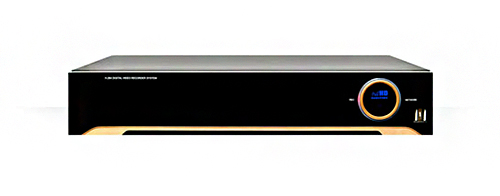

- Infinite 04/08

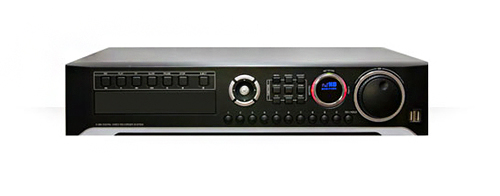

- Infinite 16R
- HD-SDI/IP Camera
- 1080p Real Time
- Spot/HD Spot
- POS Interface
Specification
| Model | HD-SDI/IP Camera | ||||
|---|---|---|---|---|---|
| INFINITE 4 | INFINITE 8 | INFINITE 16R | |||
| Compact case | 19” rack type | ||||
| Video | Camera input | 4 BNC | 8 BNC | 16 BNC | |
| Individual HD/Analog selectable | SDI only | ||||
| Available source | 720p25,30,50,60/1080p25,30,50,60/1080i50,60/Mixed/Another DVR | ||||
| IP Camera | Spec | ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethnet hub | |||
| Num | 4 | ||||
| Restriction | Cannot display HD SPOT, SPOT Cannot setup Private ZONE Cannot attach email image Cannot support Timestamp |
||||
| Output | 1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
||||
| *HD spot extention(option) | VGA HD spot extender with FTP CAT5 cable upto 100m | ||||
| Audio | Audio input | 4 RCA | 16 RCA | ||
| Output | 1 RCA | ||||
| Sensor In | 4 (NC, NO selectable) | 16(NC, NO selectable) | |||
| Alarm out | 1 relay | 14 TTL, 2 relay | |||
| Operating System | Embedded Linux OS | ||||
| Display | Speed | Real Time | |||
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 | ||||
| Split screen | 1,4 | 1,4,6,8,9 | 1,4,6,8,9,13,16 | ||
| Main Recording | CODEC | H.264 | |||
| Resolution (Pixel) | 720p, 1080p, Mixed | ||||
| Picture quality | 4 steps (Super, High, Medium, Low) | ||||
| Speed | NTSC area | 120fps@1080p | 240fps@1080p | 480fps@1080p | |
| PAL area | 100fps@1080p | 200fps@1080p | 400fps@1080p | ||
| Dual Recording | CODEC | H.264 | |||
| Condition | Main Recording is 1080p, 720p | ||||
| Resolution (Pixel) | x | 480x256 | 480x256 | ||
| Playback | Display | 1,4 | 1,4,6,8,9 | 1,4,6,8,9,13,16 | |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail | ||||
| Speed | NTSC area | 60fps@1080p | 120fps@1080p | 120fps@1080p | |
| PAL area | 100fps@1080p | 200fps@1080p | 200fps@1080p | ||
| Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | ||||
| Network | Network Interface | Gigabit Ethernet x1 | Gigabit Ethernet x2 | ||
| Speed | 15fps@1080p | 90fps@1080p | 180fps@1080p | ||
| 70fps@1080p | 140fps@1080p | ||||
| Protocol | TCP/IP, HTTP, DHCP | ||||
| Application | Windows 7 / 8 (PC Client system& IE)/MAC | ||||
| Web Browser | Internet Explorer, Safari, Chrome, Firefox | ||||
| Smart phone App | Android, iPhone for live and search | ||||
| Backup | Interface | USB 2.0 X 2 | USB 2.0 X 3 | ||
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | ||||
| The number of HDD | 2 SATA(No capacity limit ; 6TB of more) | 4 SATA + 1 eSATA(upto 12 bays, No capacity limit ; 6TB or more) | |||
| Function | •Full GUI with alpha blending | ||||
| •Individual setting of resolution, frame rates and picture quality | |||||
| •Instant Replay | |||||
| •Digital Zoom | |||||
| •Mouse Control | |||||
| •Weekly scheduler with holiday by 10 minutes setting | |||||
| •Covert, Disable and Private function of cameras | |||||
| •Motion Detection with 576 area setting | |||||
| •Relay alarm output | |||||
| •PTZ control by RS-485 | |||||
| •Daylight Saving Time and Network Time Setting | |||||
| •Multi User Authority up to 8 Users | |||||
| •Deinterlacer upon live and playback | |||||
| •22 languages with full graphic | |||||
| •Individual Network port setting | |||||
| •Auto Deletion | |||||
| •Import and Export the configuration | |||||
| •Mirroring | |||||
| •POS Interface | |||||
| •Dual CODEC engine for independent video transmission | |||||
| •Interactive setup via network | |||||
| Others | Power Consumption | 60W | 150W | ||
| Operating Temperature | 5 ~40℃(41~104F) | ||||
| Relative Humidity | Maximum 80% non-condensing | ||||
| Dimension | 340(W)×250(D)×60(H) mm | 430(W)×420(D)×88(H) | |||
