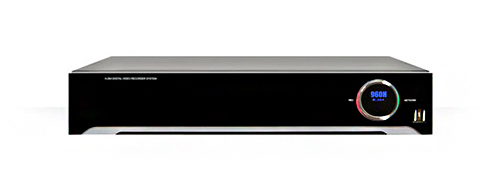

- New Ultima 08/16

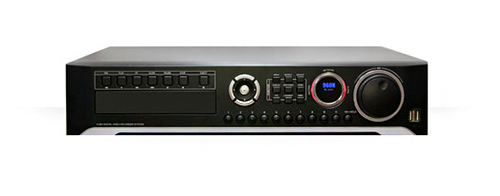

- New Ultima 16R/20R/32R
- Analog/960H
- Spot/HD Spot
- POS Interface
Specification
| Model | Analog/960H | ||||||
|---|---|---|---|---|---|---|---|
| New Ultima 08 | New Ultima 16 | New Ultima 16R | New Ultima 20R | New Ultima 32R | |||
| Compact case | 19" rack type | ||||||
| Video | Camera input | 8 BNC | 16 BNC | 16 BNC(loop out) | 20 BNC(loop out) | 32 BNC | |
| Available source | Composite/960H/Mixed | ||||||
| Output | 1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
||||||
| Audio | Audio input | 4 RCA | 16 RCA | ||||
| Output | 1 RCA | 1 RCA | |||||
| Sensor In | 4 (NC, NO selectable) | 16 (NC, NO selectable) | |||||
| Alarm out | 1 relay | 14 TTL/ 2 relay | |||||
| Operating System | Embedded Linux OS | ||||||
| Display | Speed | Real Time | |||||
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 | ||||||
| Split screen | 1,4,6,8 | 1,4,6,8,9,13,16 | 1,4,6,8,9,13,16 | 1,4,5,6,8,9,12,16,17,20 | 1,4,5,6,8,9,12,16,17,20,25,32 | ||
| Recording | CODEC | H.264 / JPEG for 3G, Dual CODEC | |||||
| Resolution (Pixel) | WD1, D1, WCIF, CIF, Mixed | ||||||
| Picture quality | 4 steps (Super, High, Medium, Low) | ||||||
| Speed | NTSC area | 240fps@WD1 | 480fps@WD1 | 480fps@WD1 | 600fps@WD1 | 960fps@WD1 | |
| PAL area | 200fps@WD1 | 400fps@WD1 | 400fps@WD1 | 500fps@WD1 | 800fps@WD1 | ||
| Playback | Display | 1,4,6,8 | 1,4,6,8,9,13,16 | 1,4,6,8,9,13,16 | 1,4,6,8,9,12,13,14,16,20 | 1,4,6,8,9,12,13,14,16,20,25,32 | |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail | ||||||
| Speed | NTSC area | 120fps@WD1 | 240fps@WD1 | 240fps@WD1 | 300fps@WD1 | 240fps@WD1 | |
| PAL area | 100fps@WD1 | 200fps@WD1 | 200fps@WD1 | 250fps@WD1 | 200fps@WD1 | ||
| Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | ||||||
| Network | Network Interface | Gigabit Ethernet | |||||
| Speed | NTSC area | 300fps@D1 | 100fps@D1 | 100fps@D1 | 200fps@D1 | 200fps@D1 | |
| PAL area | 200fps@D1 | 80fps@D1 | 80fps@D1 | 160fps@D1 | 160fps@D1 | ||
| Protocol | TCP/IP, HTTP, DHCP | ||||||
| Application | Windows 7 / 8 (PC Client system& IE)/MAC | ||||||
| Web Browser | Internet Explorer, Safari, Firefox | ||||||
| Smart phone App | Android, iPhone for live and search | ||||||
| Backup | Interface | USB 2.0 X 2 | USB 2.0 X 3 | ||||
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | ||||||
| The number of HDD | 2 SATA(No capacity limit ; 4TB of more) | 4 SATA(No capacity limit ; 4TB of more), 1 e-SATA( upto 12 bays) | |||||
| Function | •Full GUI with alpha blending | ||||||
| •Individual setting of resolution, frame rates and picture quality | |||||||
| •Instant Replay | |||||||
| •Digital Zoom | |||||||
| •Mouse Control | |||||||
| •Weekly scheduler with holiday by 10 minutes setting | |||||||
| •Covert, Disable and Private function of cameras | |||||||
| •Motion Detection with 576 area setting | |||||||
| •Relay alarm output | |||||||
| •PTZ control by RS-485 | |||||||
| •Daylight Saving Time and Network Time Setting | |||||||
| •Multi User Authority up to 8 Users | |||||||
| •Deinterlacer upon live and playback | |||||||
| •17 languages with full graphic | |||||||
| •Individual Network port setting | |||||||
| •Auto Deletion | |||||||
| •Import and Export the configuration | |||||||
| •Mirroring | |||||||
| •POS Interface | |||||||
| •Dual CODEC engine for independent video transmission | |||||||
| •Interactive setup via network | |||||||
| Others | Power Consumption | 60W | 96W | ||||
| Operating Temperature | 5 ~40℃(41~104F) | ||||||
| Relative Humidity | Maximum 80% non-condensing | ||||||
| Dimension | 340(W) × 250(D) × 60(H) mm | 430 (W) × 420 (D) × 88 (H) mm | |||||
