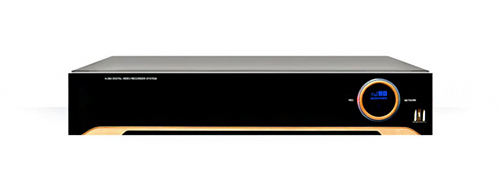

- Primero 04/08

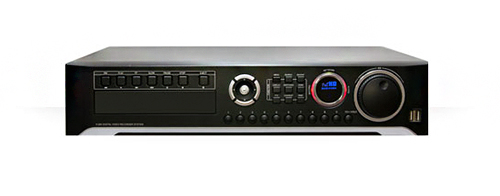

- Primero 16R/16R+/32R
- Analog/960H/HD-SDI
- 1080p Real Time
- Spot/HD Spot
- POS Interface
Specification
| Model | Analog/960H/HD-SDI | ||||||
|---|---|---|---|---|---|---|---|
| PRIMERO 4 | PRIMERO 8 | PRIMERO 16R | PRIMERO 16R+ | PRIMERO 32R | |||
| Compact case | Rack | ||||||
| Video | Camera input | 4 BNC | 8 BNC | 16 BNC | 16 BNC | 32 BNC | |
| Individual HD/Analog selectable | Hybrid(Patent) | ||||||
| Available source | 720p25,30,50,60/1080p25,30,50,60/1080i50,60/Composite/960H/Mixed | ||||||
| Output | 1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
||||||
| Audio | Audio input | 4 RCA | 16 RCA | ||||
| Output | 1 RCA | ||||||
| Sensor In | 4 (NC, NO selectable) | 16(NC, NO selectable) | |||||
| Alarm out | 1 relay | 14 TTL, 2 relay | |||||
| Operating System | Embedded Linux OS | ||||||
| Display | Speed | Real Time | |||||
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 | ||||||
| Split screen | 1,4 | 1,4,6,8,9 | 1,4,6,8,9,13,16 | 1,4,6,8,9,13,16,25,32 | |||
| Recording | CODEC | H.264 / JPEG for 3G, Dual CODEC | |||||
| Resolution (Pixel) | 720p, 1080p, 960H, 720H, WCIF, CIF Mixed | ||||||
| Picture quality | 4 steps (Super, High, Medium, Low) | ||||||
| Speed | NTSC area | 120fps@1080p | 240fps@1080p | 480fps@1080p | 480fps@1080p | 480fps@1080p | |
| PAL area | 100fps@1080p | 200fps@1080p | 400fps@1080p | 400fps@1080p | 400fps@1080p | ||
| Playback | Display | 1,4 | 1,4,8 | 1,4,6,8,9,13,16 | 1, 4, 6, 8, 9, 12, 13, 14, 16, 20, 25, 32 | ||
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail | ||||||
| Speed | NTSC area | 60fps@1080p | 120fps@1080p | 120fps@1080p | 480fps@1080p | 480fps@1080p | |
| PAL area | 100fps@1080p | 200fps@1080p | 200fps@1080p | 400fps@1080p | 400fps@1080p | ||
| Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | ||||||
| Network | Network Interface | Gigabit Ethernet | |||||
| Speed | 15fps@1080p | 90fps@1080p | 180fps@1080p | ||||
| 70fps@1080p | 140fps@1080p | ||||||
| Protocol | TCP/IP, HTTP, DHCP | ||||||
| Application | Windows 7 / 8 (PC Client system& IE)/MAC | ||||||
| Web Browser | Internet Explorer, Safari, Chrome, Firefox | ||||||
| Smart phone App | Android, iPhone for live and search | ||||||
| Backup | Interface | USB 2.0 X 2 | USB 2.0 X 3 | ||||
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | ||||||
| The number of HDD | 2 SATA(No capacity limit ; 6TB of more) | 4 SATA + 1 eSATA(upto 12 bays, No capacity limit ; 6TB or more) | |||||
| Function | •Full GUI with alpha blending | ||||||
| •Individual setting of resolution, frame rates and picture quality | |||||||
| •Instant Replay | |||||||
| •Digital Zoom | |||||||
| •Mouse Control | |||||||
| •Weekly scheduler with holiday by 10 minutes setting | |||||||
| •Covert, Disable and Private function of cameras | |||||||
| •Motion Detection with 576 area setting | |||||||
| •Relay alarm output | |||||||
| •PTZ control by RS-485 | |||||||
| •Daylight Saving Time and Network Time Setting | |||||||
| •Multi User Authority up to 8 Users | |||||||
| •Deinterlacer upon live and playback | |||||||
| •22 languages with full graphic | |||||||
| •Individual Network port setting | |||||||
| •Auto Deletion | |||||||
| •Import and Export the configuration | |||||||
| •Mirroring | |||||||
| •POS Interface | |||||||
| •Dual CODEC engine for independent video transmission | |||||||
| •Interactive setup via network | |||||||
| Others | Power Consumption | 60W | 150W | ||||
| Operating Temperature | 5 ~40℃(41~104F) | ||||||
| Relative Humidity | Maximum 80% non-condensing | ||||||
| Dimension | 340(W)×250(D)×60(H) mm | 430(W)×420(D)×88(H) | |||||
