- TA Lite Series

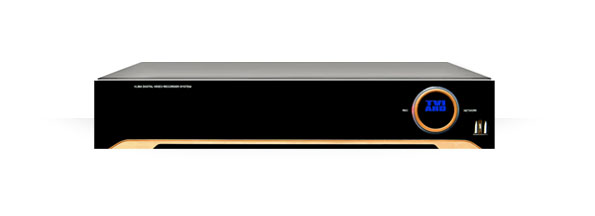

- TA Lite 04/08/16
- Analog/960H/AHD 720p/AHD 1080p/
TVI 720p/TVI 1080p/IP Camera/another DVR - Spot/HD Spot(except for 4ch)
- POS Interface
Specification
| Model | TVI/AHD LITE | ||||
|---|---|---|---|---|---|
| TA LITE 04 | TA LITE 08 | TA LITE 16 | |||
| Compact case | |||||
| Video | Camera input | 4 BNC | 8 BNC | 16 BNC | |
| Individual HD/Analog selectable | All Hybrid | ||||
| Available source | TVI 720p25,30/1080p25,30 AHD 720p25,30/1080p25,30 /Composite/960H/Mixed/anotherDVR |
||||
| IP Camera | Spec | ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethnet hub | |||
| Num | 1 | 2 | 4 | ||
| Restriction | Cannot display SPOT Cannot setup Private ZONE Cannot attach email image Cannot support Timestamp |
Cannot display HD SPOT, SPOT Cannot setup Private ZONE Cannot attach email image Cannot support Timestamp |
|||
| Output | 1 HDMI (Main Display) 1 VGA (Main Display) 1 Composite (Programmable SPOT) |
1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
|||
| Audio | Audio input | 4 RCA | |||
| Output | 1 RCA | ||||
| Sensor In | 4 (NC, NO selectable) | ||||
| Alarm out | 1 relay | ||||
| Operating System | Embedded Linux OS | ||||
| Display | Speed | Real Time | |||
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 | ||||
| Split screen | 1,4 | 1,4,6,8,9 | 1,4,6,8,9,13,16 | ||
| Main Recording | CODEC | H.264 | |||
| Resolution (Pixel) | 1080p (1080p25,30) 720p (720p25,30) 960H, D1 (Composite, 960H) |
||||
| Picture quality | 4 steps (Super, High, Medium, Low) | ||||
| Speed | NTSC area | 120fps@720p/50fps@1080p | 240fps@720p/120fps@1080p | 480fps@720p/240fps@1080p | |
| PAL area | 100fps@720p/50fps@1080p | 200fps@720p/100fps@1080p | 400fps@720p/200fps@1080p | ||
| Dual Recording | CODEC | H.264 | |||
| Condition | Main Recording is 1080p, 720p | ||||
| Resolution (Pixel) | x | x | 480x256 | ||
| Playback | Display | 1,4 | 1,4,6,8,9 | 1,4,6,8,9,13,16 | |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail | ||||
| Speed | NTSC area | 30fps@1080p | 60fps@1080p | 120fps@1080p | |
| PAL area | 25fps@1080p | 50fps@1080p | 100fps@1080p | ||
| Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | ||||
| Network (Individual setting of resolution, frame rates and picture quality) |
Network Interface | Gigabit Ethernet | |||
| High Resolution (Pixel) | 720p, 960x540(1080p25,30) 720p, 960x540 (720p25,30) 960H, D1 (Composite, 960H) |
||||
| Low Resolution (Pixel) | 480x256 (1080p25,30) 480x256 (720p25,30) CIF (Composite, 960H) |
||||
| Speed | NTSC area | 20fps@720p | 40fps@720p | 100fps@720p | |
| PAL area | 20fps@720p | 40fps@720p | 100fps@720p | ||
| Protocol | TCP/IP, HTTP, DHCP | ||||
| Application | Windows 7 / 8 (PC Client system& IE)/MAC | ||||
| Web Browser | Internet Explorer, Safari, Chrome, Firefox | ||||
| Smart phone App | Android, iPhone for live and search | ||||
| Backup | Interface | USB 2.0 X 2 | |||
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | ||||
| The number of HDD | 2 SATA(No capacity limit ; 6TB of more) | ||||
| Function | •Full GUI with alpha blending | ||||
| •Individual setting of resolution, frame rates and picture quality | |||||
| •Instant Replay | |||||
| •Digital Zoom | |||||
| •Mouse Control | |||||
| •Weekly scheduler with holiday by 10 minutes setting | |||||
| •Covert, Disable and Private function of cameras | |||||
| •Motion Detection with 576 area setting | |||||
| •Relay alarm output | |||||
| •PTZ control by RS-485 | |||||
| •Daylight Saving Time and Network Time Setting | |||||
| •Multi User Authority up to 8 Users | |||||
| •Deinterlacer upon live and playback | |||||
| •22 languages with full graphic | |||||
| •Individual Network port setting | |||||
| •Auto Deletion | |||||
| •Import and Export the configuration | |||||
| •Interactive setup via network | |||||
| •POS Interface | |||||
| •Dual CODEC engine for independent video transmission | |||||
| •Mirroring | |||||
| Others | Power Consumption | 60W | |||
| Operating Temperature | 5 ~40℃(41~104F) | ||||
| Relative Humidity | Maximum 80% non-condensing | ||||
| Dimension | 340(W)×250(D)×60(H) mm | ||||
