TA Quattro

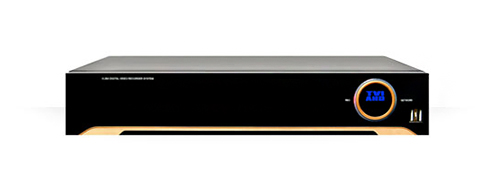

- TA QUATTRO 04/08

TA QUATTRO 04/08

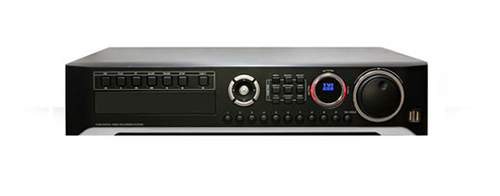

- TA QUATTRO 16R+/32R

TA QUATTRO 16R/32R

Specification

Specification
Model TVI/AHD QUATTRO
TA QUATTRO 04 TA QUATTRO 08 TA QUATTRO 16R+ TA QUATTRO 32R
Compact case 19” rack type
Video Camera input 4 BNC 8 BNC 16 BNC 32 BNC
Individual HD/Analog selectable All Hybrid
Available source TVI 720p25,30/1080p25,30
AHD 720p25,30/1080p25,30
/Composite/960H/Mixed/anotherDVR
IP Camera Spec ONVIF 2.3, RTSP, H.264, dual stream
use gigabit ethnet hub
Num 4
Restriction Cannot display HD SPOT, SPOT
Cannot setup Private ZONE
Cannot attach email image
Cannot support Timestamp
Output 1 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
Audio Audio input 4 RCA 16 RCA
Output 1 RCA
Sensor In 4 (NC, NO selectable) 16 (NC, NO selectable)
Alarm out 1 relay 2 Relay, 14 TTL
Operating System Embedded Linux OS
Display Speed Real Time
Resolution (Pixel) 1280X1024, 1280X720, 1920X1080
Split screen 1,4 1,4,6,8,9 1,4,6,8,9,13,16 1, 4, 6, 8, 9, 12, 13, 14, 16, 20, 25, 32
Main Recording CODEC H.264
Resolution (Pixel) 1080p, 720p, 960x540 (1080p25,30)
720p, 960x540 (720p25,30)
960H, D1, 480x240, CIF (Composite, 960H)
Speed NTSC area 120fps@720p/120fps@1080p 240fps@720p/240fps@1080p 480fps@720p/480fps@1080p 480fps@720p/480fps@1080p
PAL area 100fps@720p/100fps@1080p 200fps@720p/200fps@1080p 400fps@720p/400fps@1080 400fps@720p/400fps@1080
Dual Recording CODEC H.264
Condition Main Recording is 1080p, 720p
Resolution (Pixel) Rec Stream 480x256 480x256 480x256
Playback Display 1,4 1,4,6,8,9 1,4,6,8,9,13,16 1, 4, 6, 8, 9, 12, 13, 14, 16, 20, 25, 32
Search mode Calendar, Event ,POS , Panorama, Thumbnail
Speed NTSC area 60fps@1080p 120fps@1080p 480fps@1080p 480fps@1080p
PAL area 100fps@1080p 200fps@1080p 400fps@1080p 400fps@1080p
Fast/Slow speed Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause
Network
(Individual setting
of resolution,
frame rates and
picture quality)		 Network Interface Gigabit Ethernet X 1 Gigabit Ethernet X 2
High Resolution (Pixel) 1080p, 720p(1080p25,30)
720p, 960x540 (720p25,30)
960H, D1 (Composite, 960H)
Low Resolution (Pixel) 480x256 (1080p25,30)
480x256 (720p25,30)
CIF (Composite, 960H)
Speed NTSC area 15fps@1080p 90fps@1080p 180fps@1080p 180fps@1080p
PAL area 13fps@1080p 70fps@1080p 140fps@1080p 140fps@1080p
Protocol TCP/IP, HTTP, DHCP
Application Windows 7 / 8 (PC Client system& IE)/MAC
Web Browser Internet Explorer, Safari, Chrome, Firefox
Smart phone App Android, iPhone for live and search
Backup Interface USB 2.0 X 2 USB 2.0 X 3
Backup device External HDD, CD&DVD-RW, Network, Thumb Drive
The number of HDD 2 SATA(No capacity limit ; 6TB of more) 4 SATA + 1 eSATA(upto 12 bays, No capacity limit ; 6TB or more)
Function •Full GUI with alpha blending
•Individual setting of resolution, frame rates and picture quality
•Instant Replay
•Digital Zoom
•Mouse Control
•Weekly scheduler with holiday by 10 minutes setting
•Covert, Disable and Private function of cameras
•Motion Detection with 576 area setting
•Relay alarm output
•PTZ control by RS-485
•Daylight Saving Time and Network Time Setting
•Multi User Authority up to 8 Users
•Deinterlacer upon live and playback
•22 languages with full graphic
•Individual Network port setting
•Auto Deletion
•Import and Export the configuration
•Interactive setup via network
•POS Interface
•Dual CODEC engine for independent video transmission
•Mirroring
Others Power Consumption 60W 150W
Operating Temperature 5 ~40℃(41~104F)
Relative Humidity Maximum 80% non-condensing
Dimension 340(W)×250(D)×60(H) mm 430(W)×420(D)×88(H)
