- i-LITE Series

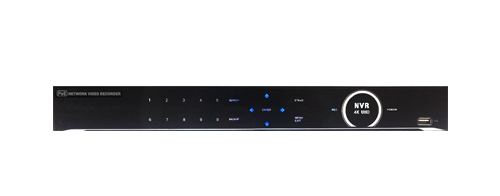

- i-LITE 04W/08W/16W
- POE
- 4K UHD
- POS Interface
Specification
| Model | NVR | ||||
|---|---|---|---|---|---|
| i-LITE 04W | i-LITE 08W | i-LITE 16W | |||
| Video | Camera input | 4 POE | 8 POE | 16 POE | |
| IP Camera | Spec | ONVIF 2.3, RTSP, H.264, dual stream | |||
| Num | 4 | 8 | 16 | ||
| Output | 1 HDMI (Main Display) 1 VGA (Main Display) | ||||
| Audio | Audio input | 1 RCA | |||
| Output | 1 RCA | ||||
| Sensor In | 4 (NC, NO selectable) | 8 (NC, NO selectable) | 16 (NC, NO selectable) | ||
| Alarm out | 1 relay | 1 relay, 3 TTL | |||
| Operating System | Embedded Linux OS | ||||
| Display | Speed | Real Time | |||
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080, 3840x2160(HDMI only) | ||||
| Split screen | 1,4 | 1,4,6,8,9 | 1,4,6,8,9,13,16 | ||
| Resolution (Pixel) / fps | main: upto 8MP @ 30 dual: upto 960x540 |
||||
| Total Bitrate | 120Mbps | ||||
| Channel Bitrate | 30 Mbps | 15 Mbps | 7.5 Mbps | ||
| Playback | Display | 1,4 | 1,4,6,8,9 | 1,4,6,8,9,13,16 | |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail | ||||
| Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | ||||
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | ||||
| Network Interface | Gigabit Ethernet X 1 | ||||
| The number of HDD | 2 SATA + 1 eSATA(upto 12 bays, No capacity limit ; 6TB or more) | ||||
| Function | •Full GUI with alpha blending | ||||
| •Individual setting of resolution, frame rates and picture quality | |||||
| •Instant Replay | |||||
| •Digital Zoom | |||||
| •Mouse Control | |||||
| •Weekly scheduler with holiday by 10 minutes setting | |||||
| •Covert, Disable and Private function of cameras | |||||
| •Motion Detection with 576 area setting | |||||
| •Relay alarm output | |||||
| •PTZ control by RS-485 | |||||
| •Daylight Saving Time and Network Time Setting | |||||
| •Multi User Authority up to 8 Users | |||||
| •Deinterlacer upon live and playback | |||||
| •22 languages with full graphic | |||||
| •Individual Network port setting | |||||
| •Auto Deletion | |||||
| •Import and Export the configuration | |||||
| •Interactive setup via network | |||||
| •POS Interface | |||||
| •Dual CODEC engine for independent video transmission | |||||
| •Mirroring | |||||
| Others | Power Consumption | 96W (48V) | 190W (SMPS) | ||
| Operating Temperature | 5 ~40℃(41~104F) | ||||
| Relative Humidity | Maximum 80% non-condensing | ||||
| Dimension | 380(W)x340(D)x50(H) mm | ||||
