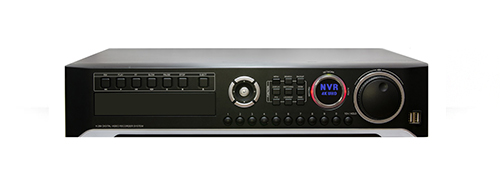

- i-PRIMERO 32R NP / 32R 16P /32R 32P
- 32Channel None- POE / 16 POE /32 POE
- 4K UHD
- POS Interface
Specification
| Model | NVR | ||||
|---|---|---|---|---|---|
| i-PRIMERO 32R NP | i-PRIMERO 32R 16P | i-PRIMERO 32R 32P | |||
| Video | Camera input | 1 RJ45 | 16 POE + 1 RJ45 | 32 POE + 1 RJ45 | |
| IP Camera | Spec | ONVIF 2.3, RTSP, H.264, dual stream | |||
| Num | 32 | ||||
| Output | 1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
||||
| Audio | Audio input | 2 RCA | |||
| Output | 1 RCA | ||||
| Sensor In | 16 (NC, NO selectable) | ||||
| Alarm out | 2 Relay, 14 TTL | ||||
| Operating System | Embedded Linux OS | ||||
| Display | Speed | Real Time | |||
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080, 3840x2160(HDMI only) | ||||
| Split screen | 1,4,6,8,9,13,16,25,32 | ||||
| Main IPC |
CODEC | H.264 | |||
| Resolution (Pixel) / fps | main: upto 8MP @ 30 dual: upto 960x540 |
||||
| Total Bitrate | 120Mbps | ||||
| Channel Bitrate | 3.75 Mbps | ||||
| Playback | Display | 1,4,6,8,9,13,16,25,32 | |||
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail | ||||
| Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | ||||
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | ||||
| Network Interface | Gigabit Ethernet x 2 | ||||
| The number of HDD | 8 SATA + 1 eSATA(upto 8 bays, No capacity limit ; 6TB or more) | ||||
| Function | •Full GUI with alpha blending | ||||
| •Individual setting of resolution, frame rates and picture quality | |||||
| •Instant Replay | |||||
| •Digital Zoom | |||||
| •Mouse Control | |||||
| •Weekly scheduler with holiday by 10 minutes setting | |||||
| •Covert, Disable and Private function of cameras | |||||
| •Motion Detection with 576 area setting | |||||
| •Relay alarm output | |||||
| •PTZ control by RS-485 | |||||
| •Daylight Saving Time and Network Time Setting | |||||
| •Multi User Authority | |||||
| •Deinterlacer upon live and playback | |||||
| •Multi languages with full graphic | |||||
| •Individual Network port setting | |||||
| •Auto Deletion | |||||
| •Import and Export the configuration | |||||
| •Interactive setup via network | |||||
| •POS Interface | |||||
| •Mirroring | |||||
| Others | Power Consumption | 280W (SMPS) | |||
| Operating Temperature | 5 ~40℃(41~104F) | ||||
| Relative Humidity | Maximum 80% non-condensing | ||||
| Dimension | 430(W)×420(D)×88(H) | ||||
